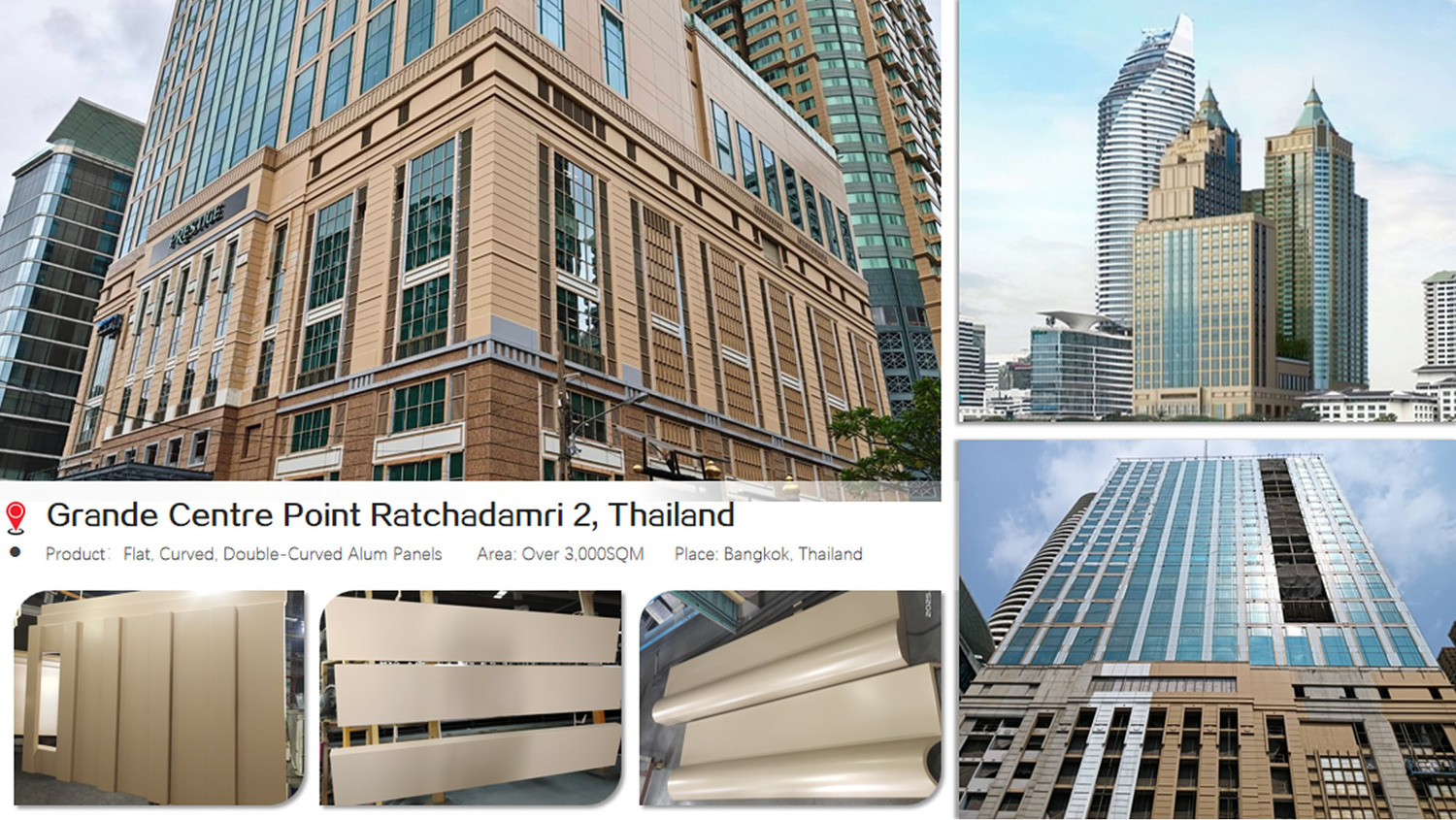

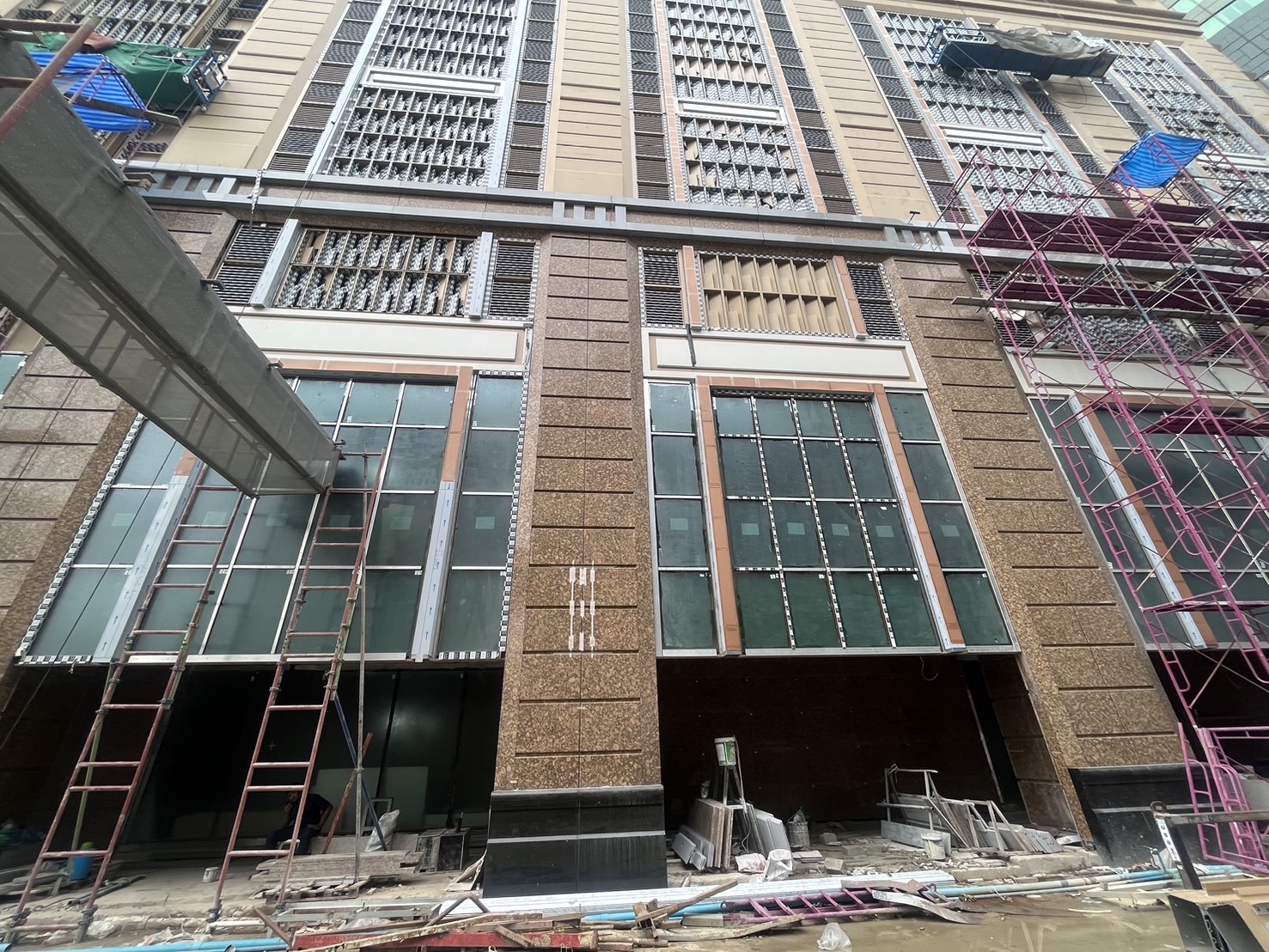

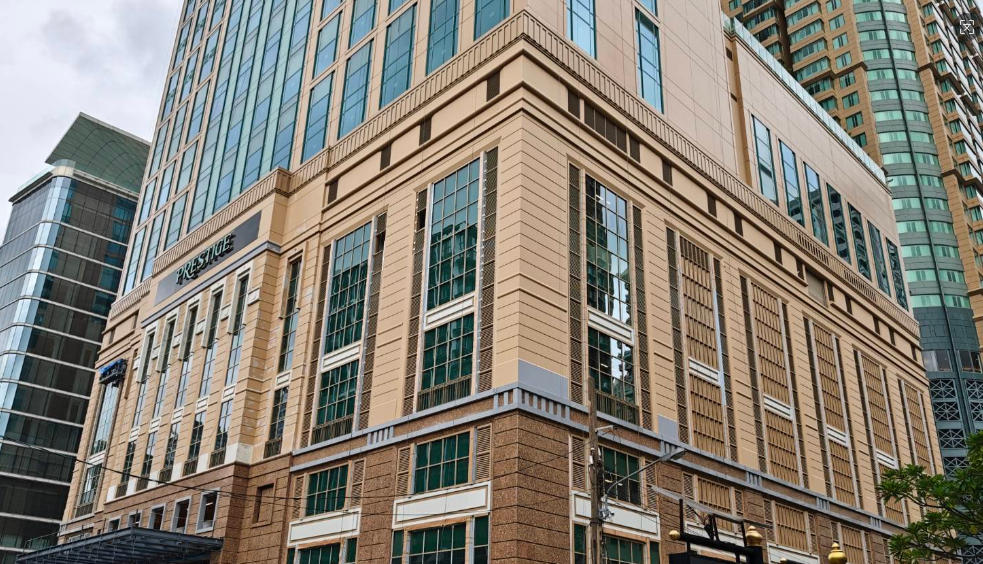

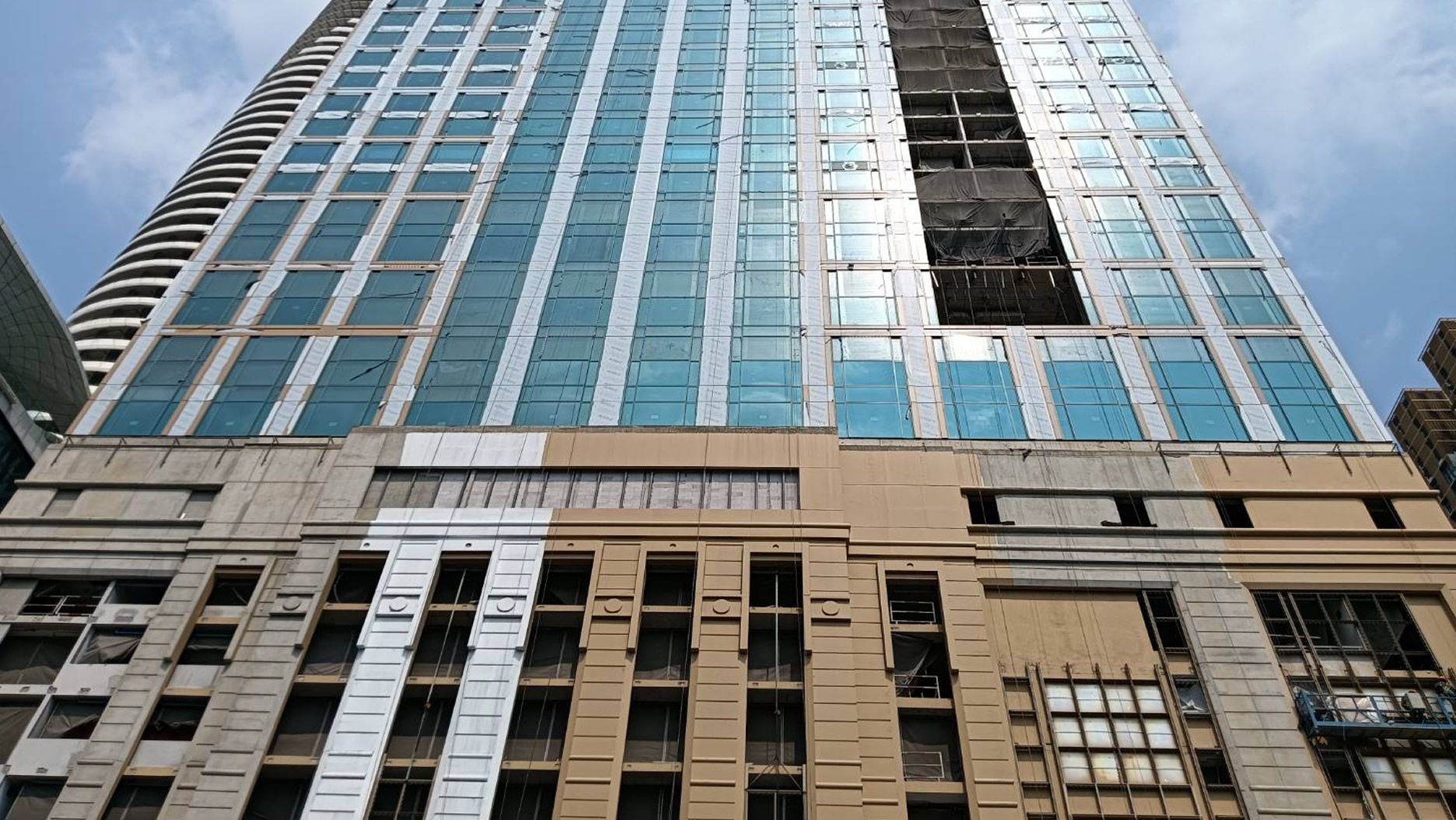

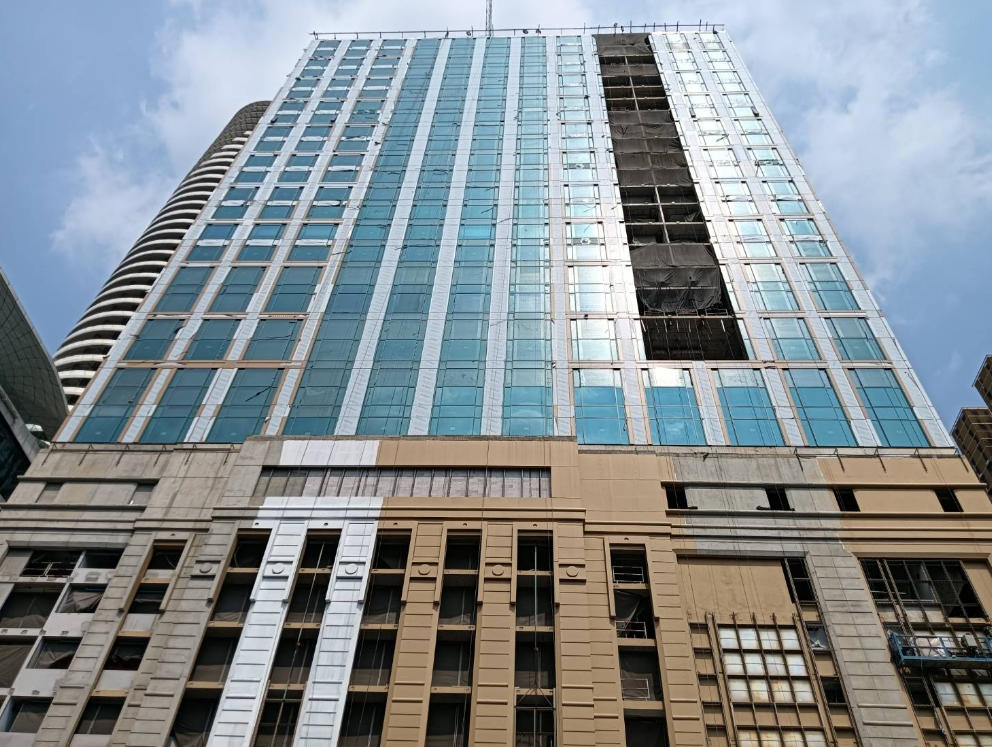

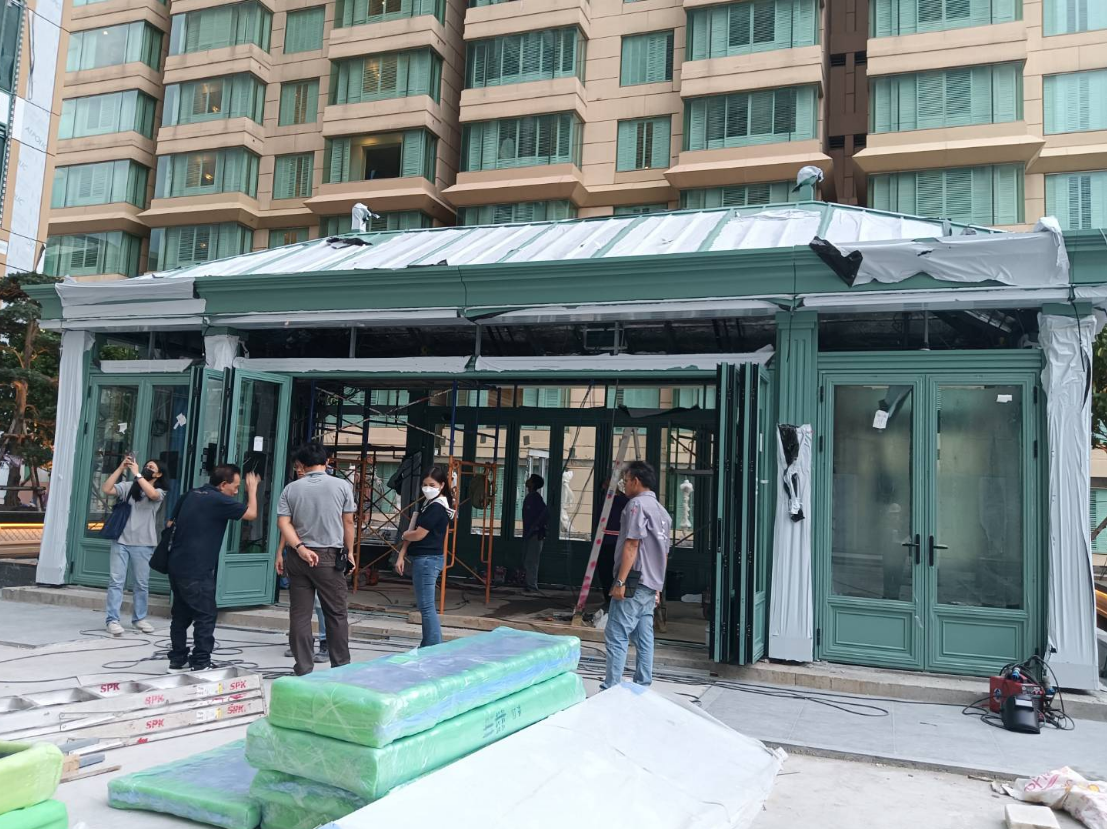

Grande Centre Point Ratchadamri 2, Thailand

Wallnova Project：Grande Centre Point Ratchadamri 2, Thailand

Product: PPC Flat, Curved, Double-Curved Alum panels

Area: Over 3000sqm

Place: Thailand

1.    Flat aluminum panels

   Flat aluminum panels are versatile, lightweight architectural cladding materials

   designed for both interior and exterior applications. These panels provide a

   smooth, modern aesthetic while offering excellent durability and weather resistance.

2.   Flat aluminum panels   attribtes

   - Material: 1100/3003/5005/6061 series aluminum alloy

   - Panel Type: Solid flat panels, composite panels (aluminum composite material - ACM)

   - Surface Finish Options:

     * PVDF coating (polyvinylidene fluoride)

     * Powder coating

     * Anodizing

     * Pre-painted

     * Brushed finish

     * Mirror finish

   - Color Options: Standard RAL and Pantone color systems, custom colors available

   - Edge Treatment: Square edge, beveled edge, folded edge

   - Core Material (for composite panels): Polyethylene (PE), fire-retardant (FR),

     mineral-filled (MF) cores available

3. TECHNICAL PARAMETERS

   - Thickness Range:

     * Solid panels: 0.8mm - 4.0mm

     * Composite panels: 3mm - 6mm total thickness (with 0.2mm - 0.5mm aluminum skins)

   - Standard Sizes:

     * 1220mm × 2440mm (4' × 8')

     * 1250mm × 2500mm

     * Custom sizes available up to 1500mm × 6000mm

   - Coating Specifications:

     * PVDF Coating: 20μm - 40μm thickness, 2-coat or 3-coat systems

     * Powder Coating: 60μm - 80μm thickness

     * Anodizing: 5μm - 25μm thickness

   - Mechanical Properties:

     * Tensile Strength: 110 - 310 MPa (depending on alloy)

     * Elongation: 5% - 25%

     * Hardness: 20 - 100 HB (Brinell hardness)

    - Performance Characteristics:

     * Fire Rating: Non-combustible (A1 class for solid panels, B-s1,d0 for FR composite)

     * Weather Resistance: Excellent UV, corrosion and temperature resistance

     * Service Life: 15 - 25 years (depending on coating system)

     * Impact Resistance: ≥10kg·cm

     * Bending Strength: ≥160 MPa

     * Thermal Conductivity: 0.02 - 0.04 W/(m·K) (for composite panels)

   - Installation System:

     * Dry hanging system

     * Hidden fastener system

     * Exposed fastener system

     * Cassette system

   - Wind Load Resistance: Up to 3.5 kPa (depending on panel thickness and installation)

   - Temperature Resistance: -50°C to +80°C

   - Sound Insulation: Up to 25 dB (with appropriate insulation backing

4. APPLICATIONS

   - Exterior curtain walls

   - Facade cladding

   - Interior wall panels

   - Ceiling panels

   - Signage and display systems

   - Partition walls

   - Canopies and awnings

   - Column covers

5. STANDARDS COMPLIANCE

   - ASTM B209 (Aluminum sheet and plate)

   - ASTM B449 (Aluminum architectural wall panels)

   - AAMA 2605 (High-performance organic coatings)

   - EN 14782 (Aluminum composite panels)

   - GB/T 23443 (Chinese standard for aluminum composite panels)
