Custom Aluminum Facade Panels | PVDF Coated Exterior Cladding | Wallnova

Our aluminum facade panels are manufactured from high-grade aluminum alloy (3005 H44 / 3105 H44), featuring exceptional corrosion resistance, lightweight structural properties, and outstanding flatness. Each panel is precision-engineered using advanced CNC machining and fabricated to your exact specifications, ensuring seamless integration with your building's design intent.

Key Features

• Weather Resistance: PVDF coating (LUMIFLON™ FEVE resin) provides 20+ years of UV, acid rain, and salt spray protection, maintaining color stability and gloss retention even in extreme climates
• Fire Safety: A2-s1,d0 fire rating (EN 13501-1 compliant) – non-combustible and suitable for high-rise applications
• Lightweight Design: 1.8–3.6 kg/㎡ reduces structural load and simplifies installation
• Custom Finishes: Available in 200+ colors including solids, metallics, wood-grain textures, and marble patterns. RAL and Pantone color matching available
• Low Maintenance: Graffiti-resistant and self-cleaning surface reduces long-term maintenance costs
• Sustainability: 100% recyclable aluminum supports LEED and green building certifications

| Parameter | Specification |
|-----------|---------------|
| Material | Aluminum Alloy 3005 H44 / 3105 H44 |
| Panel Thickness | 1.5mm – 4.0mm (customizable) |
| Max Panel Length | Up to 7,300mm |
| Surface Treatment | PVDF fluorocarbon coating (Kynar 500® equivalent) / Powder coating / Anodizing |
| Fire Rating | A2-s1,d0 (EN 13501-1) |
| Coating Hardness | ≥ 2H |
| Impact Resistance | ≥ 50 kg·cm |
| Standard Color | 200+ RAL/Pantone options |

We offer full design flexibility to bring your architectural vision to life:

• 3D Curved Panels: Dynamic double-curved and single-curved profiles for iconic facades
• Perforated Screens: Custom hole patterns for solar shading, ventilation, and acoustic performance
• Flat Cassette Panels: Clean, minimalist aesthetic with superior surface flatness
• Laser-Cut Decorative Screens: Intricate geometric, logo, or floral patterns with CNC precision at ±0.1mm

✓ High-rise building exterior cladding
✓ Commercial plaza and shopping mall facades
✓ Airport terminal and transportation hub exteriors
✓ Stadium and exhibition center envelopes
✓ Luxury villa and residential curtain walls
✓ Renovation and retrofit projects

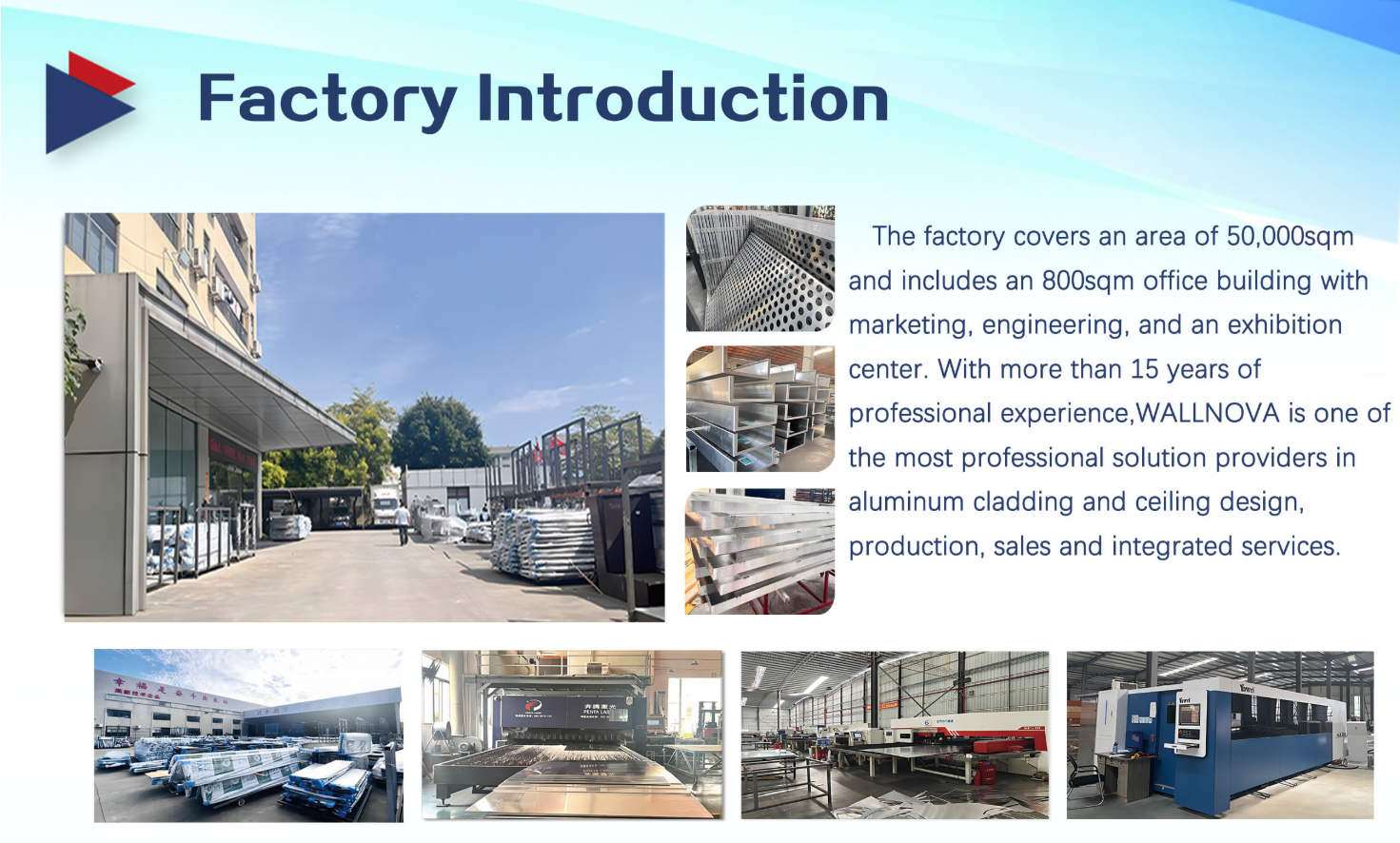

• Factory Area: 50,000sqm
• Annual Output: 500,000sqm+
• Equipment: Advanced CNC punching, bending, laser cutting, and PVDF coating lines
• Quality Control: Rigorous inspection at each production stage, ensuring flatness, color consistency, and dimensional accuracy

Quality Assurance

All Wallnova aluminum facade panels are manufactured in compliance with international standards. Our quality management system is ISO 14001 certified, and our products meet ASTM B209 and EN 13501-1 standards.

✓ 15 years of specialized experience in aluminum facade systems
✓ One-stop service: 3D modeling → structural calculation → fabrication → delivery
✓ Factory-direct pricing with no middleman markup
✓ Fast lead times and on-time delivery guarantee
✓ Full technical support and installation guidance

✓ 200+ successful projects across Southeast Asia, Australia, and the Middle East

Panels are carefully packed with PE interleaving film, foam padding, and sturdy wooden crates to prevent surface damage during transit. Standard export packaging ensures safe ocean or air freight delivery.
